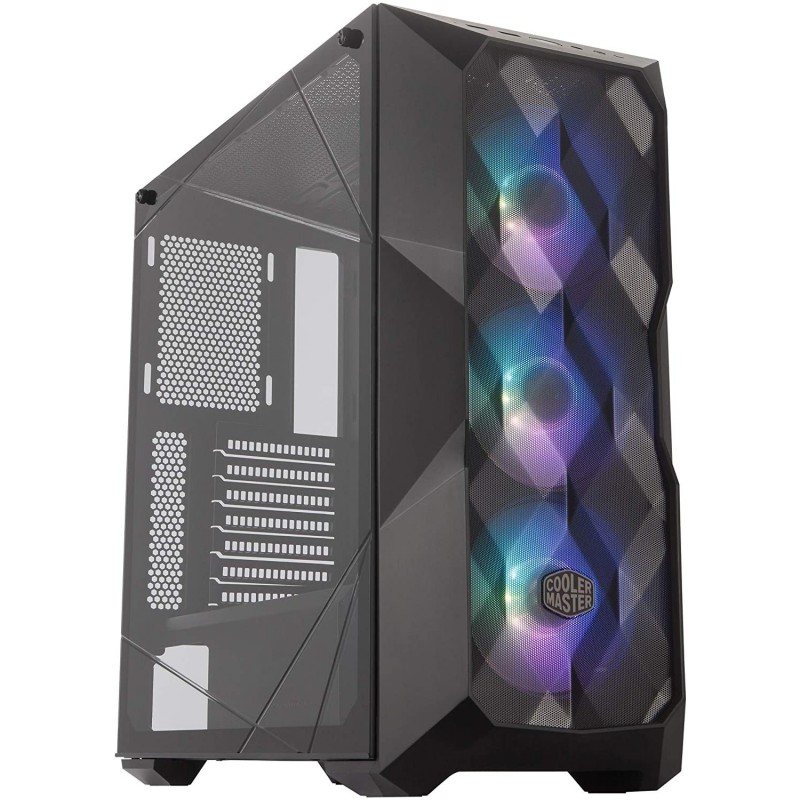

Cooler Master MasterBox TD500 Mesh



E£2,200.00

Polygonal Mesh
Crystalline Tempered Glass

This discount valid via PC Builder only


Color
LED Color

Qty


MasterBox TD500 Mesh / Mesh White

Exquisitely Ruthless

Polygonal Mesh
Crystalline Tempered Glass
Triple ARGB Fans
Dual 360mm Radiator Support
Versatile Cooling Options
Room For Upgrades

Airflow in an Art Form

The MasterBox TD500 Mesh & MasterBox TD500 Mesh White embody “airflow performance” in an art form. Three pre-installed ARGB fans flood the system with airflow and lighting, demonstrating the unique effect of ARGB through the Crystalline Tempered Glass.

Each element of design is precision-engineered to maximize performance & quality alongside aesthetics, evolving beyond the current limits of lighting and cooling. With advanced technology sculpted into fine art, the MasterBox TD500 Mesh & Mesh White carve their own path to the bleeding edge.

MCB-D500D-KGNN-S0

Data sheet

MODEL
Single item

Specific References

Model Number
MCB-D500D-KGNN-S01, MCB-D500D-KGNN-S00, MCB-D500D-WGNN-S01, MCB-D500D-WGNN-S00
Series
MasterBox Series
Size
Mid Tower
Available Color(s)
Black, White
Materials
Steel, Plastic, Tempered Glass, Mesh
Dimensions (L x W x H)
493 x 217 x 469mm (incl. Protrusions), 429.5 x 205x 447mm (excl. Protrusions)
Weight
6.95 kg
Motherboard Support
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12" x 10.7", will limit cable management features)
Expansion Slots
7
5.25" Drive Bays
N/A
2.5" / 3.5" Drive Bays (combo)
2
2.5" Drive Bays
4 (2+2 combo)
I/O Panel
2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller (only for the S01 versions), 1x ARGB 2-to-3 splitter
Pre-installed Fans - Top
N/A
Pre-installed Fans - Front
3x 120mm ARGB Fans
Pre-installed Fans - Rear
N/A
Fan Support - Top
3x 120mm, 2x 140mm
Fan Support - Front
3x 120mm, 2x 140mm
Fan Support - Rear
1x 120mm
Radiator Support - Top
120mm, 240mm, 360mm, (44mm max motherboard component height)
Radiator Support - Front
120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support - Rear
120mm
Clearance - CPU Cooler
165mm/6.49"
Clearance - PSU
180mm/7.08", 295mm/11.61" (w/ HDD cage removed)
Clearance - GFX
410mm/16.1"
Cable Routing
19mm/0.74"
Dust Filters
Top, Bottom, Front
Power Supply Support
Bottom mount, ATX
Warranty
2 years
EAN Code
4719512095522 (Mesh w/ controller), 4719512095515 (Mesh w/o controller), 4719512095546 (Mesh White w/ controller), 4719512095539 (Mesh White w/o controller)
UPC Code
884102067822 (Mesh w/ controller), 884102067815 (Mesh w/o controller), 884102067846 (Mesh White w/ controller), 884102067839 (Mesh White w/o controller)
