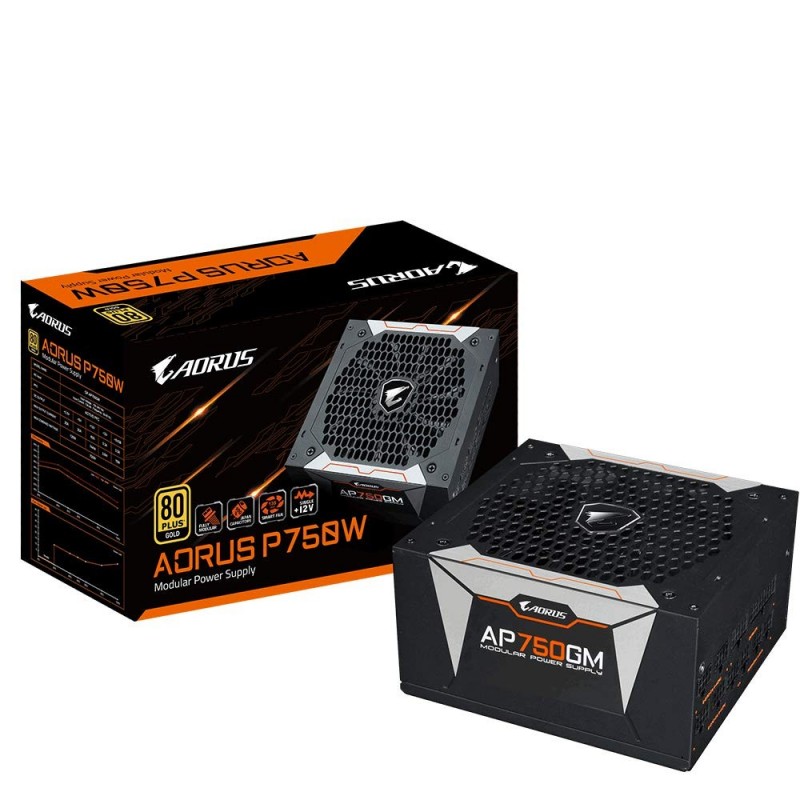

GIGABYTE AORUS P750W 80+ GOLD Modular



E£2,450.00

  • Fully Modular Design
  • High quality 100% Japanese Capacitors

Features

  • Fully Modular Design
  • High quality 100% Japanese Capacitors
  • 135mm 2 ball bearing smart fan with fan stop function
  • 80 PLUS Gold certified: above 90% efficiency at 50% load
  • Single +12V rail
  • OCP/OTP/OVP/OPP/UVP/SCP protection
  • 10 years warranty (Adjusted according to different regions)


GP-AP750GM

Data sheet

MODEL
Single item
Watt
750W

Specific References

GP-AP750GM
  • Type
    Intel Form Factor ATX 12V v2.31
  • PFC
    Active PFC (>0.9 typical)
  • Input Voltage
    100-240 Vac (full range)
  • Input Current
    10A
  • Input Frequency
    47-63 Hz
  • Output Capacity
    750W
  • Dimension
    150 x 160 x 86mm
  • Fan Type
    135mm Double ball bearing fan
  • 80 PLUS
    Gold
  • Efficiency
    90% at typical load
  • MTBF
    >100,000 hours
  • Protection
    OVP/OPP/SCP/UVP/OCP/OTP
  • Power Good Signal
    100ms ~ 150ms
  • Hold Up Time
    > 16m sec at full load (115V)
  • Cable Type
    Flat, All black
  • Connectors
    ATX/MB 20+4 Pin x 1 : 650mm
    CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
    PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1
    SATA x6 + 4 Pin Peripheral x2 :
    550mm+100mm+100mm+100mm*1
    450mm+100mm+100mm+100mm *1
    4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
    4 Pin Floppy x 1 : 100mm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
