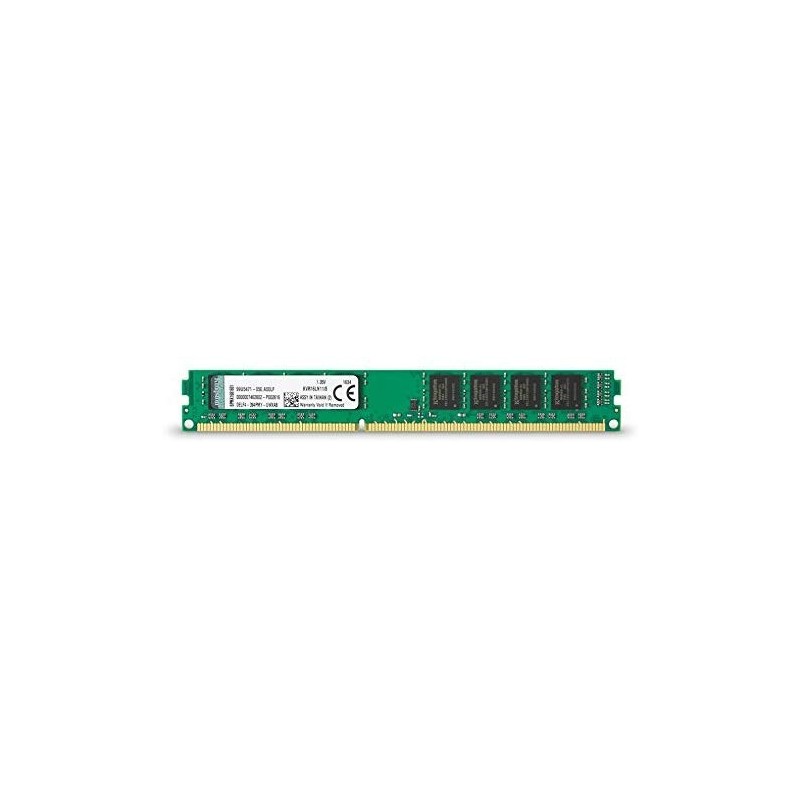

Kingston Value RAM DDR3L-1600 PC



EGP850.00
EGP750.00 Save EGP100.00

One  module of 1600MHz DDR3 Memory


FEATURES


This document describes ValueRAM's 1G x 64-bit (8GB)
DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 2Rx8,
low voltage, memory module, based on sixteen 512M x 8-bit
FBGA components. The SPD is programmed to JEDEC standard
latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V.
This 240-pin DIMM uses gold contact fingers. The electrical
and mechanical specifications are as follows:

• JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply
• VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB: Height 0.740” (18.75mm) or 1.180” (30.00mm)

KVR16LN11/8

Data sheet

Memory Form Factor
DIMM (PC)
Memory Type
DDR3L

Specific References

SPECIFICATIONS

CL(IDD) 11 cycles
Row Cycle Time (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 35ns (min.)
Maximum Operating Power (1.35V) = TBD W*
UL Rating 94 V - 0
Operating Temperature 0o C to 85o C
Storage Temperature -55o C to +100o

**اسعار خاصه للكميات**

**موجود تقسيط عن طريق البنك الاهلى بشرط وجود بطاقه ائتمانيه من البنك الاهلى فيها رصيد كافى**
