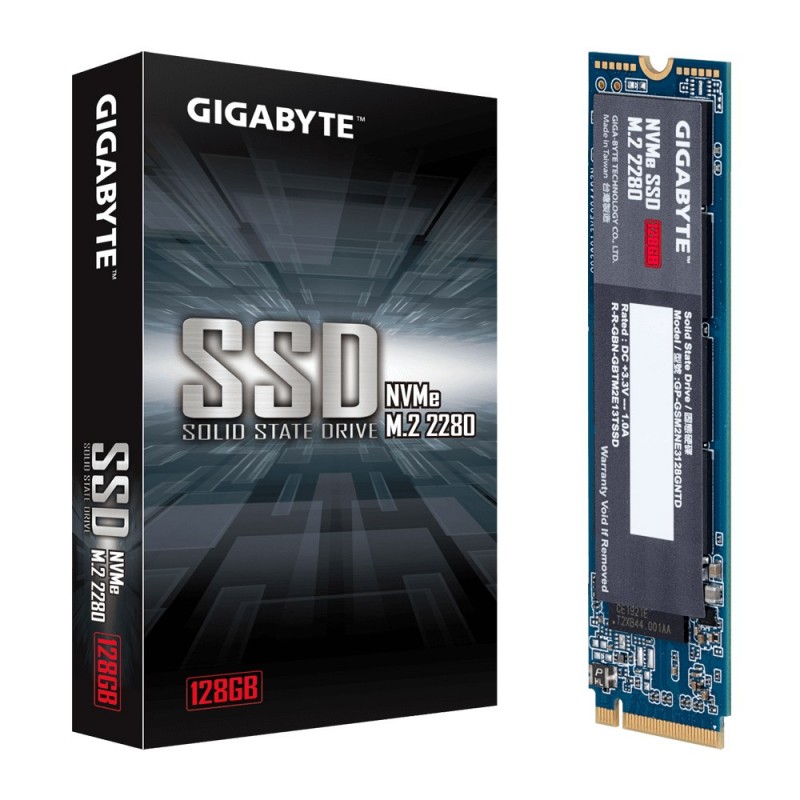

Gigabyte NVMe SSD


  • HMB (Host Memory Buffer) supported
  • TRIM & S.M.A.R.T supported



The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.


Data sheet

SDD / HDD Form Factor

Specific References

  • Interface
    PCI-Express 3.0 x4, NVMe 1.3
  • Form Factor
    M.2 2280
  • Total Capacity
  • Warranty
    128GB  Limited 5-year or 110TBW
    265GB  Limited 5-year or 300TBW
    512GB  Limited 5-year or 800TBW
  • NAND
    NAND Flash
  • External DDR Cache
  • Sequential Read speed
    128GB  Up to 1550 MB/s
    256GB  Up to 1700 MB/s
    512GB  Up to 1700 MB/s
  • Sequential Write speed
    128GB  Up to 550 MB/s
    265GB  Up to 1100 MB/s
    512GB  Up to 1550 MB/s
  • Random Read IOPS
    128G    UP to 100k
    256GB  Up to 180k
    512GB  Up to 270K
  • Random Write IOPS
    128GB  Up to 130k
    256GB  Up to 250k
    512GB  Up to 340K
  • Dimension
    80 x 22 x 2.3 mm
  • Mean time between failure (MTBF)
    1.5M hours
  • Power Consumption (Active)
    128GB Avg. read : 2.2W ; Write : 1.7W
    256GB Avg. read : 2.6W ; Write : 2.4W
    512GB Avg. read : 3.3W ; Write : 2.8W
  • Power Consumption (Idle)
    128GB    1.1mw
    256GB    1.9mw
    512GB    1.8mw
  • Temperature (Operating)
    0°C to 70°C
  • Temperature (Storage)
    -40°C to 85°C
