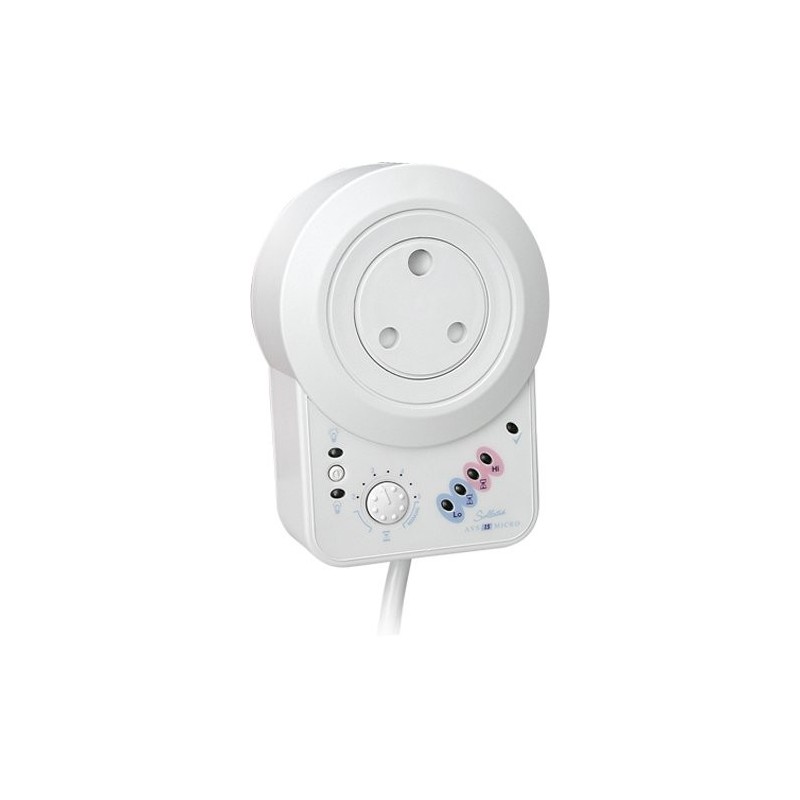

Sollatek AVS 16 APPLIANCE GUARD



E£800.00
E£750.00 Save E£50.00

Over & Under Voltage Protection for Laptops, Monitors, Fridges, Coolers, Media Centres & Satellites

  • High voltage
  • Low Voltage
  • Spikes/surges
  • Powerback surges

Ideal for

  • Air conditioners
  • Large Fridge/freezers

Max Current: 16 amps

Wait time: User adjustable from 2 minutes to 5 minutes


Description

Low power (under-voltage) will damage any refrigeration appliance’s compressor and High Power (Over voltage) will damage any electrical or electronic equipment. The AVS16 is the most complete power protection device combining over-voltage, under-voltage, power-back surges and spikes/surge protection. Additionally, there is a delay when power returns to normal. This will ensure that the appliance is not switched on-off repeatedly during fluctuations nor it is subjected to a massive surge normally experienced when power returns after power cuts. Also accommodating a start up / inrush current of 70Amps.

Furthermore, the New Sollatek AVS16 Micro version has enhanced features allowing the user to set the delay time and monitoring the state of the voltage.

AVS 16 Micro

Data sheet

Voltage Protection
Voltshield ( Surge Protectors)

Specific References

Specification

Max Power 16 Amps
Wait Time Adjustable from 2 minutes to 5 minutes
Ideal For All electrical and electronic equipment, Air Conditioners, Large Fridges/freezers
Weight 500gm
Dimensions 205 x 135 x 55mm

Specifications
Model AVS15
Nominal voltage 230V
Frequency 50/60 Hz
Load current (Amps) 16
Inrush current (20ms) 110 Amps
Max consumption (milli Amps) <100mA
Wait time 15secs-3mins
Over-voltage disconnect 265V
Over-voltage reconnect 263V
Under-voltage disconnect 185V
Under-voltage reconnect 190V
Max operating voltage (Uc ) 320V
Spike / surge protection Joules 160
(Class II) Amps 6500A (8/20us)
Response 10 nanosecs
Protection mode: L-N
Response time (over voltage) <20 millisec
Response time (under voltage) 1 second
Brown-out response time 20 millisec
Approx packed weight 500 g
Dimensions packed (mm) H 230 x W 134 x D 54
Shipping quantity per carton 40
Shipping carton dimensions (mm) H 590 x W 540 x D 250
Socket type UK 16A
