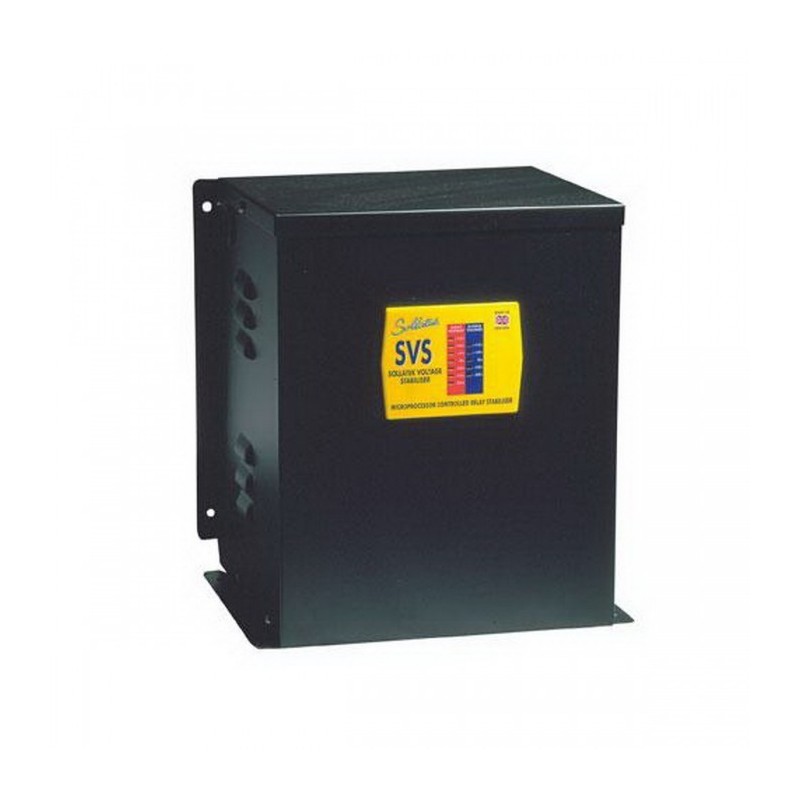

Sollatek Heavy duty stabilisation Wall mountable



E£4,100.00

  • Stablisation up to 75A
  • Direct wire connection(Terminal)
  • Wall mountable
  • High voltage stablisation
  • Low voltage stablisation
  • Spikes/surges protection
  • Power-back surges protection
  • Basic Lighting protection
  • AVS function
  • Startup time delay
  • +/- 6% stablisation
  • Solid state

Amp

Qty


Description

The Sollatek SVS monitors the mains voltage continuously. If the voltage rises or drops, the SVS will stabilise the output to ensure the voltage reaching your equipment remains constant at 230V (+/-6%), within the operating range of the unit. If the input voltage falls below 142V or rises above 295V, the SVS will disconnect the output, thereby protecting the load. Once the mains voltage returns again within acceptable limits, the SVS will reconnect the output following a start up delay.

The SVS20, 35, 50 and 75 are heavy duty wall mountable stablisers with terminal input/output, for direct wiring and secure connectivity.

Stock No Model
98220550 SVS20-22 230V Wallmount
98235000 SVS35-22 230V Wallmount
98250000 SVS50-22 230V Wallmount
98275000

SVS75-22 230V Wallmount

SVA20-22WM 5KVA

Data sheet

Voltage Protection
Voltage Stabilizers

Specific References

Specification

Model SVS20-WM SVS35-WM SVS50-WM SVS75-WM
Output Current 20Amps 35Amps 50Amps 75Amps
VA@230V 4600V 8050V 11500V 17250V
VA@240V 4800V 8400V 12000V 18000V
Weight 20kg 29kg 29kg 45kg
Case type Metal Metal Metal Metal
AVS function YES YES YES YES
Startup delay YES YES YES YES
Spike protection YES YES YES YES
Dimension (mm) 300 x 200 x 280 330 x 330 x 440 330 x 330 x 440 330 x 330 x 440
