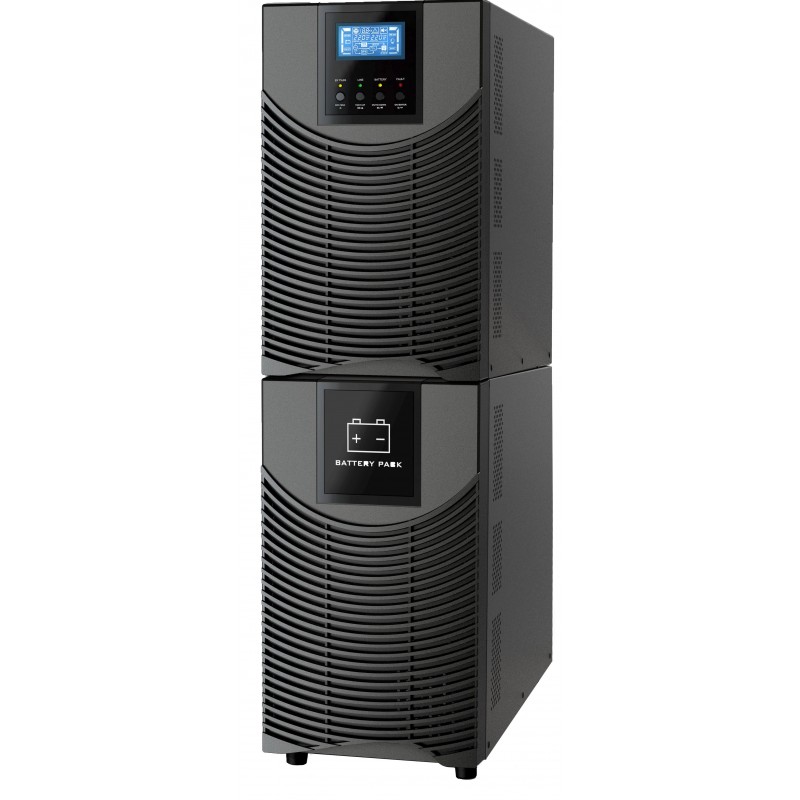

Sollatek Maxima 6kVA



E£34,800.00

  • Output power factor 0.8
  • Wide input voltage range (110v – 300V)
  • Programmable power management outlets

Description

A true double conversion UPS, Maxima will provide clean, high level quality power to fully protect mission-critical devices such as sensitive networks, small computer centres, servers, telecom applications, as well as industrial applications.

  • 50/60 Hz Frequency Converter Mode
  • ECO made operation for energy saving
  • Emergency Power Off (EPO) Function
  • SNMP+USB+RS-232 multiple communications
  • Higher accuracy for output voltage
  • Smart battery charger design to optimise battery performance
  • DSP technology applied for 6K and up models
  • Maintenance bypass available for 6K and up models
  • Optional N+X parallel redundancy available for 6K and up models
  • Adjustable battery numbers for 6K and up models
6000VA 4800W @ FULL LOAD 10MIN

Data sheet

Voltage Protection
Online Double Conversion UPS

Specific References

PHASE                                                    Single phase with ground

CAPACITY*                                             6000 VA / 4800 W

Nominal Voltage                                       208/220/230/240VAC

Input Voltage Range                                 110-300 VAC)  110-300 VAC   176-300 VAC  (Based on load at 100%)

Frequency Range                                     46~54 Hz or 56~64 Hz

Power Factor                                           0.99 @ Nominal Voltage (100% load)

OUTPUT

Output Voltage                                       208/220/230/240VAC

Voltage Regulation                                 ± 1%

Frequency Range(Synchronized Range)   46~54 Hz or 56~64 Hz

Frequency Range    (Batt. Mode)             50 Hz or 60Hz ± 0.1 Hz

Current Crest Ratio                                3:1

Harmonic Distortion                               3 % THD (Linear Load)

                                                            5 % THD (Linear Load)

Transfer Time

AC Mode to Battery Mode                       Zero

Inverter to Bypass                                 4 ms (Typical)

EFFICIENCY

        AC Mode                                       92%

        Battery Mode                                 90%

BATTERY

Standard Model Battery Type                  12 V / 9 AH
     Numbers                                          16
 Typical Recharge Time                          9 hours recover to 90% capacity
 Charging Current (max.)                       1A/2A
 Charging Voltage                                  218.4 VDC ±1%

INDICATORS

LCD                                                     Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM

Battery Mode                                        Sounding every 4 seconds
Low Battery                                          Sounding every second
Overload                                              Sounding twice every second
Fault                                                     Continously sounding
PHYSICAL

Standard Model Dimension, D x W x H (mm) 369 x 190 x 688
Net Weight (kgs)                                         61

ENVIRONMENT

Humidity                                                 0-95% RH @ 0-50°C (non-condensing
Noise Level                                              Less than 55dBA @ 1 Meter


MANAGEMENT

Smart RS-232/USB                                     Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP                                           Power management from SNMP manager and web browser

**اسعار خاصه للكميات**

**موجود تقسيط عن طريق البنك الاهلى بشرط وجود بطاقه ائتمانيه من البنك الاهلى فيها رصيد كافى**
